Guardian of High-Voltage Distribution Systems: An In-Depth Look at Type-L Dropout Fuses

Guardian of High-Voltage Distribution Systems: An In-Depth Look at Type-L Dropout Fuses

2/3/2026
Within the intricate urban power grids and vast rural electricity networks, have you ever noticed those small tubes angled on the utility poles? When the power system encounters a fault, they drop rapidly with a decisive bang. This is not an accident; it is the Dropout Fuse (Cutout)​ fulfilling its mission—serving as the first critical line of defense for the distribution system, protecting valuable transformers and lines from catastrophic damage.



1. What is a Dropout Fuse?

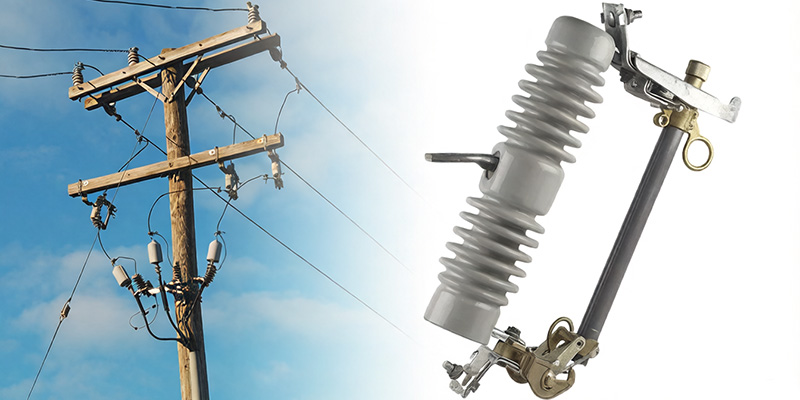

A Dropout Fuse is a protective device widely used on branch points of overhead distribution lines and on the high-voltage side of distribution transformers, typically rated for 10kV to 35kV systems. It is essentially a cleverly designed outdoor expulsion-type fuse responsible for interrupting overload and short-circuit currents.
Its operating principle is clear and intuitive. When a short circuit or severe overload occurs on the line, the resulting surge in fault current rapidly melts the specially designed alloy fuse link inside the fuse tube. Once the link melts, its inherent tension is lost, triggering the release of a precise mechanical latching mechanism. Subsequently, the fuse tube, under its own weight and with the assistance of an internal spring, swiftly rotates downward and drops. This action not only cuts off the current but also creates an unmistakable physical air isolation gap, achieving a double break in the circuit.



2. Why is it the "Core Guardian" of the Distribution System?

Precise Overload Protection
Prolonged overload operation of a distribution transformer accelerates the aging of winding insulation, ultimately leading to heat-induced failure. The fuse link in a dropout fuse is precisely calibrated. When the load current continuously exceeds a preset threshold, it operates according to its time-current characteristic curve. This selective interruption isolates the fault to the smallest possible area, effectively preventing catastrophic transformer failure due to cumulative thermal effects.

Swift Short-Circuit Interruption
Overhead lines are susceptible to external disturbances like lightning surges, falling trees, or animal contact. These events often cause sudden short circuits, generating massive fault currents. Dropout fuses possess excellent rapid-interruption characteristics, capable of acting within milliseconds as the current reaches its first peak. This near-instantaneous interruption contains the spread of fault energy, preventing a local incident from escalating into a widespread outage affecting the main grid.

Visibly Apparent Disconnect Point
For field maintenance personnel, clear equipment status indication is vital for safety. The dropped fuse tube hangs visibly in the air, providing a disconnect signal that can be clearly identified from a distance. This mechanical indication is far more reliable than an electrical signal alone. It offers an intuitive and definitive point of electrical isolation for maintenance work, eliminating the risk of misoperation.



3. The Unique Advantages of the Eaton Cooper Type-L Fuse

Maintaining stable performance long-term in harsh outdoor environments is a severe test for any dropout fuse. The Eaton Cooper series Type-L Dropout Fuse addresses several persistent industry challenges through a series of innovative design features.

Unidirectional Downward Exhaust Design
When interrupting high currents, traditional fuses often expel high-pressure arc gases indiscriminately from both ends. This bidirectional exhaust can easily cause arc re-ignition or phase-to-phase short circuits in areas with densely packed conductors, potentially creating secondary faults. The Eaton Type-L fuse employs a patented unidirectional downward exhaust structure, forcefully directing the arc-quenching gases toward the ground. This design significantly enhances operational safety in areas with heavy contamination or narrow line corridors, effectively suppressing fault escalation.

Application of Advanced Materials Science
Its insulating housing is manufactured using an advanced organic vulcanization bonding process, rather than simple mechanical assembly. Traditional ceramic or epoxy materials can crack due to water ingress and subsequent freezing at material interfaces under severe temperature cycling, leading to insulation failure. The Type-L fuse's monolithic construction significantly improves sealing. Its material possesses excellent hydrophobic and thermal shock resistance properties, enabling it to withstand a wide spectrum of harsh climates, from tropical heat and humidity to frigid cold and ice.

High Standard Interrupting Capacity
According to technical documentation, the Eaton Type-L fuse offers a rated interrupting current of up to 10kA or higher at the 12kV voltage level. This specification means it can reliably break very high fault currents, absorbing and dissipating tremendous electromagnetic and arc energy. Its internal arc-extinguishing medium and structural design are optimized to ensure stable performance even under extreme interrupting conditions, preventing catastrophic events like tube rupture.



4. Application Scenarios: Where Do We Find Them?

On the High-Voltage Side of Transformers
This is its most classic application. Installed in series on the high-voltage line side of a transformer, it serves as the primary protection for the transformer itself. In the event of a downstream low-side short circuit or an internal transformer fault, the fuse operates swiftly, isolating the transformer from the grid to prevent the fault from developing further.

At Sectionalizing Points and Branches on Overhead Lines
Installing dropout fuses at intervals along a long radial feeder divides the line into logical sections. If a fault occurs in any section, only the fuse for that section operates, precisely confining the outage to the faulted segment. This greatly improves power supply reliability and facilitates faster fault location and service restoration.

Protection for Capacitor Banks
Used for overcurrent protection of outdoor pole-mounted shunt capacitor banks used for reactive power compensation. Capacitor banks can generate inrush currents during switching and sustain overcurrent during internal faults. Dedicated dropout fuses provide timely and effective protection for these important power quality adjustment devices.



Conclusion

The dropout fuse, while seemingly simple in appearance, embodies profound engineering wisdom in power systems. It consolidates multiple functions—overcurrent protection, fault isolation, and status indication—into one reliable mechanical action. When selecting equipment for the power grid, choosing a product like the Eaton Cooper Type-L fuse, rigorously proven through severe testing such as 500-hour salt spray tests and other extreme environmental validations, holds significance far beyond protecting a single piece of equipment. It concerns the resilience of the entire distribution network, the safety of maintenance personnel, and the silent guardianship of continuous power supply for countless households. In the invisible world of flowing electricity, it remains a solid and visible anchor point for safety.
