A ring network—often referred to as a looped distribution system—forms a closed electrical circuit, with the primary power source supplying energy to this loop. Power flows through a high-voltage main line arranged in a ring configuration, branching out through high-voltage switches to various distribution points. This circular topology offers a unique advantage: each distribution branch can draw power from either side of the loop.
If a fault occurs on the left side of the main line, the branch continues to receive power from the right, and vice versa. While the power source itself may be singular, the dual-sided power access imparts a quasi-dual-supply reliability to every branch. This architecture significantly elevates the reliability of the electrical distribution, especially in urban and industrial environments where downtime is intolerable.

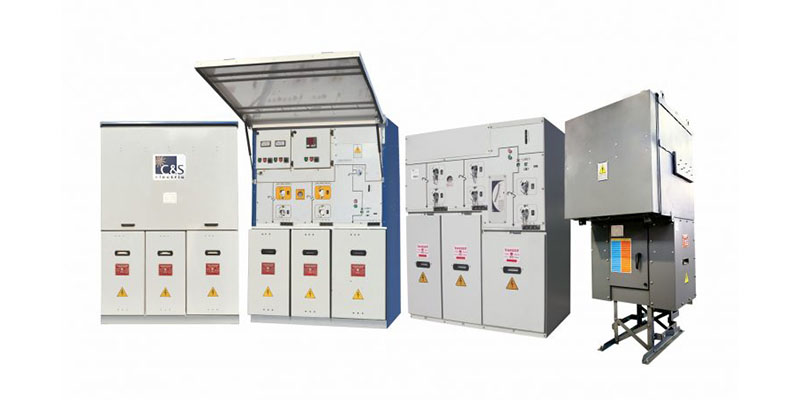

The "Ring Main Unit" (RMU) is the cornerstone of the ring network distribution strategy. It is a high-voltage switchgear housed in a metallic enclosure—either stand-alone or modular in design—where each unit functions as a part of the ring's spine. In essence, the RMU's busbar is a segment of the circular main line, making every installed unit a contributing link in the looped network.
An RMU, when viewed in isolation, reveals little of its ring-based logic. It is only when integrated into a ring topology that its true role becomes evident. Typically, each RMU features a load break switch and high-voltage fuse as its core components. These are housed in compact, steel-clad, and often gas-insulated compartments, making them suitable for confined or indoor spaces.
The internal architecture of RMUs is deliberately simple. Most applications involve low to moderate current loads, so there is no need for the complexity or cost of traditional circuit breakers. Instead, RMUs utilize load break switches to handle standard current flows, while fuses are employed to interrupt fault currents, particularly in the event of a short circuit.
This combination—load break switch plus fuse—acts as a cost-effective surrogate for circuit breakers in specific capacities. The operational concept is as follows: during regular operations, the load switch engages and disengages the circuit. Upon detecting a fault, the fuse rapidly isolates the affected section, protecting both equipment and personnel. However, this configuration is optimal only within certain current and voltage thresholds, beyond which more sophisticated protection is required.
While originally conceived for ring-based networks, RMUs have transcended this application. Their simplicity, reliability, and adaptability have made them viable for non-ring distribution systems as well. The term “ring main unit” now broadly refers to any high-voltage cabinet centered around a load break switch, regardless of whether it's embedded in a looped system.
The widespread adoption of RMUs is closely tied to the expansion of small and medium-scale industrial and commercial infrastructures. These users often operate transformers rated below 1250 kVA, and their networks demand steady supply with minimal switching activity. For such use cases, the RMU's design proves more than sufficient—meeting operational needs without excess complexity or cost.
The modern urban landscape—with its vertical skylines and densely packed utility systems—demands a new generation of electrical distribution solutions. With substations often situated within buildings, safety regulations mandate the elimination of oil-filled equipment, while spatial constraints call for compact designs. RMUs, along with vacuum circuit breakers, dry-type transformers, and dry-type instrument transformers, meet these dual demands.
The RMU’s compact footprint, high safety margins, and negligible maintenance requirements give it a clear edge over traditional switchgear. Its gas-insulated, sealed design means no risk of oil leaks, reduced fire hazard, and long intervals between servicing. For operators and developers alike, this translates into lower operational expenditures and improved long-term reliability.
As the need for miniaturization and enhanced performance grows, RMUs are evolving. New-generation load break switches now deliver higher breaking capacities in even smaller packages. This progression fuels the technical advancement of RMUs, turning them into high-performance, modular solutions tailored for modern demands.
The latest RMU models are not just reliable—they are standardized and scalable. Series production has led to a wide array of configurations that accommodate varying load profiles, installation constraints, and environmental conditions. From underground substations in metropolitan cores to compact units in renewable energy installations, RMUs are increasingly indispensable.
Ring main units are no longer niche components restricted to looped distribution systems. They represent a paradigm shift in medium-voltage power distribution—balancing simplicity, reliability, and adaptability. Their rise parallels the ongoing transformation of global infrastructure, making them a foundational element in both today’s and tomorrow’s energy systems.
