The foundation of electrical protection design begins with a precise rated current calculation. For a 2500kVA pad-mounted transformer operating at a nominal high-side voltage of 37kV, the primary rated current (I₁) is determined using the three-phase formula:
I₁ = S / (√3 × U) = 2500 / (1.732 × 37) ≈ 39.0A
This figure represents the theoretical baseline upon which all subsequent protective device selections must be rationalized. Precision here is essential—any deviation at this stage will cascade into compounding protection mismatches.

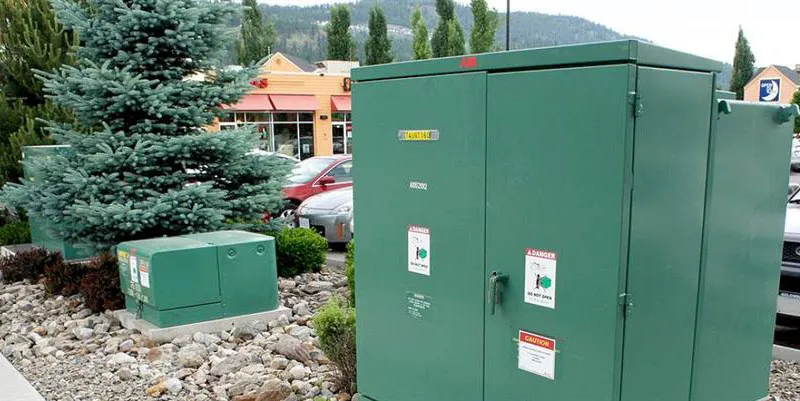

Transformer environments are often nuanced, and protection strategies must consider more than raw electrical data. In this case, the 2500kVA transformer is a pad-mounted (oil-filled, sealed) unit, placing the fuse within an enclosed thermal envelope. Empirical field data supports that fuses in such environments require de-rating by 15%, due to limited heat dissipation.
However, de-rating is typically unnecessary for low-rated fuses (e.g., 20A or below). These devices naturally generate less heat and are less susceptible to ambient thermal buildup, even in enclosed housings.
Ambient temperature is another critical factor. According to IEC standards, high-voltage fuses are typically rated for operation between –25°C to 40°C. For every degree above 40°C, the rated current must be reduced by 1% per °C. In pad-mounted transformers, the ambient can realistically reach 80°C, necessitating a 40% reduction in rated current. This figure may vary slightly depending on real-world conditions, such as regional climate and equipment design tolerances.
Another layer of complexity is overload margin. For this analysis, a factor of 1.1 is applied. Some standards recommend up to 1.3, but this depends on project-specific parameters such as loading variability and system redundancy.
Moreover, the transformer’s inrush current—especially the magnetizing inrush—must be considered. For a 2500kVA unit, the inrush factor is estimated at 10× the rated current, a conservative yet robust assumption.
This specific application does not involve motor loads, which would introduce start-up surges that further complicate fuse coordination. When present, such non-linear loads demand meticulous curve analysis to avoid nuisance tripping.
Taking all these variables into account, the appropriate fuse rating can be approximated using:
Iₙ = I₁ / 0.85 / (1 – 0.4) × 1.1 ≈ 84.1A
Let’s evaluate whether an 80A fuse can withstand the expected inrush current. Referencing the time-current characteristic curve:
At 0.01 seconds, expected current is 1800A
At 0.1 seconds, expected current is 580A
The fuse’s response curve demonstrates ample tolerance, comfortably riding through the inrush transient.
Chinese and international standards offer valuable validation. It is crucial to distinguish between sealed oil-immersed fuses and air-insulated, non-enclosed fuses, as their operational behaviors differ markedly.
Standards such as GB/T 15166.6-2023 and DL/T 5222-2021 reinforce the aforementioned rationale. They also recognize magnetizing inrush as a key consideration, commonly suggesting up to 10× or even 14× the rated current for brief durations (e.g., 0.1 seconds).
These national guidelines align well with empirical field data and fuse manufacturers’ design philosophies. Though fuses in oil do behave differently in thermal terms, the core principles of inrush survival and overload endurance remain universally applicable.
For sealed, oil-immersed pad-mounted transformers , the fuse rating must be chosen conservatively, yet pragmatically. Overstated multiplication factors like “2× rated current” may result in insufficient protection and should be avoided unless justified by extreme environmental or load conditions.
Conversely, for air-insulated fuses, standard practice of applying 1.5 to 2.0× coefficients is generally acceptable, as thermal dissipation is more efficient and ambient temperatures more manageable.
Returning to the original question—can the transformer’s rated current be artificially reduced to enhance protection? The short answer: not effectively. Protection must align with realistic operating currents and system dynamics. While it’s theoretically possible to select a fuse with a lower nominal rating (e.g., 63A), this may lead to tripping during routine inrush events unless the oil temperature margin and thermal inertia are precisely modeled.
Therefore, any decision to reduce fuse current ratings must be accompanied by:
Detailed thermal analysis of oil temperature in peak summer conditions
Verification of fuse time-current curves
A solid understanding of the transformer’s inrush profile
In this case, 63A may be feasible, but only if cooling conditions and margin coefficients are fine-tuned accordingly. Balancing protection sensitivity with operational robustness remains the heart of transformer protection design.
