The most widely used power transformers today are oil-immersed transformers and dry-type resin transformers. At the core of their operation lies the insulation system—an intricate network of materials such as oil, paper, or resin. This insulation system is the bedrock of safe and reliable performance. In fact, the lifespan of a transformer is largely determined by the endurance of its insulation materials.
Extensive field experience and statistical studies reveal that insulation-related failures account for more than 85% of all transformer accidents. A well-maintained transformer with a robust insulation system can operate safely for decades, but once the insulation begins to deteriorate, the risk of catastrophic failure increases exponentially. Preventive and predictive maintenance of insulation systems is therefore the cornerstone of prolonging service life and ensuring reliable power supply.

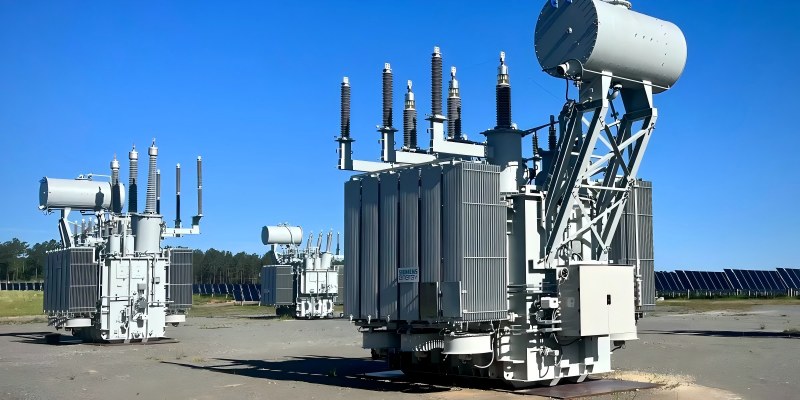

In oil-immersed transformers, insulation consists primarily of insulating oil and solid materials such as paper, pressboard, and wood laminates. Aging, in this context, means the progressive decomposition of these materials under environmental stress, which reduces their insulating strength.
Solid paper insulation is one of the most critical elements in oil-immersed transformers. It includes paper, board, spacers, binding tapes, and laminated components. The fundamental component of these materials is cellulose, represented chemically as (C6H10O6)n, where n denotes the degree of polymerization.
Fresh insulation paper typically has a polymerization degree around 1300. When it declines to 250, mechanical strength falls by more than half. Severe aging occurs when the degree of polymerization drops to 150–200, signaling the end of its service life. As aging progresses, strength diminishes, moisture and gases such as CO and CO₂ are released, and harmful by-products like furfural appear. These compounds reduce dielectric strength, increase dielectric loss, and can even corrode metal components.
The irreversible nature of cellulose degradation makes it one of the defining limits of transformer lifespan. For long service, insulation materials must not only exhibit high electrical and mechanical performance but also age slowly under prolonged thermal and electrical stress.
Cellulose fibers form the foundation of solid insulation. Unlike metals, cellulose contains almost no free electrons, meaning current conduction arises from ionic movement. The presence of hydroxyl groups makes cellulose inherently hygroscopic, predisposing it to absorb moisture. Residual water and colloidal impurities further compromise its stability.
This is why paper insulation is dried, vacuum-treated, and impregnated with oil or varnish before use. These processes enhance dielectric stability, block oxygen ingress, and reduce voids that could cause partial discharge. However, improper varnish selection or incomplete curing can contaminate the oil system over time.
Transformer paper must withstand diverse stresses. Four key mechanical properties determine its suitability:
Tensile strength: resistance to pulling forces without breaking.
Puncture strength: ability to withstand localized pressure.
Tear resistance: force required to propagate a tear.
Toughness: ability to endure repeated folding or bending.
Monitoring degradation often involves measuring polymerization degree or analyzing furfural content in oil, which provides insight into internal paper aging.
Brittleness: Excessive heating drives out bound water, accelerating embrittlement. Under vibration or electrical stress, brittle paper flakes away, triggering insulation failure.
Loss of mechanical strength: Even if electrical resistance remains acceptable, weakened fibers can no longer resist short-circuit forces.
Shrinkage: Aged insulation contracts, loosening mechanical clamping and leading to displacement, abrasion, or flashover under stress.
Liquid insulation—transformer oil—was first applied in the late 19th century and remains indispensable for both dielectric strength and thermal management. Oil increases breakdown voltage, shortens insulation clearances, and dissipates heat effectively through convection.
Good transformer oil must possess high dielectric strength, low viscosity, stability against oxidation, and favorable cooling properties. In practice, however, oil is a mixture of hydrocarbons and trace impurities, and its performance gradually degrades under thermal, electrical, and oxidative stress.
Contamination: Entry of water and particles lowers dielectric strength and raises dielectric loss.
Oxidation: Accelerated by oxygen, metal particles, heat, and moisture, leading to acid formation and sludge deposition.
Catalytic effects: Copper, iron, and aluminum filings accelerate oxidation, darkening the oil and impairing transparency.
Oil degradation unfolds in stages:
Early stage: Formation of peroxides, which weaken cellulose insulation.
Intermediate stage: Accumulation of organic acids that corrode metals and damage insulation.
Late stage: Production of sludge—a tar-like conductive mass—that clings to windings, blocks radiators, and accelerates overheating.
Routine oil analysis is essential. Key methods include:
Acid value and interfacial tension testing to detect oxidation.
Moisture content analysis to identify water ingress.
Gas chromatography to track dissolved gases like CO and CO₂, indicators of cellulose breakdown.
Vacuum oil treatment and regeneration to restore oil quality, though natural inhibitors may be removed during processing.
Resin-insulated transformers, typically employing epoxy-based systems, are widely used in fire-sensitive environments such as skyscrapers, airports, and petrochemical facilities.
Epoxy-quartz sand vacuum cast: Economical but prone to voids and unsuitable for humid or fluctuating environments.
Epoxy-glass fiber reinforced casting: Superior strength, but requires perfect impregnation to avoid partial discharge sites.
Glass-fiber wrapped impregnation: Simplifies manufacturing, but resin viscosity must be carefully controlled to prevent micro-voids.
Resin transformers have insulation performance comparable to oil-filled designs, but they face distinct challenges:
Temperature rise: Resin transformers operate at higher thermal levels, stressing insulation. Local hot spots undetected by average measurements can drastically shorten lifespan. Infrared thermography is recommended for monitoring.
Partial discharge: Caused by voids, resin cracks, or uneven field distribution, partial discharge erodes insulation and must be strictly controlled through factory testing and periodic inspection.
Selecting a transformer from a manufacturer with rigorous process control, proven insulation systems, and stringent quality standards is critical to ensuring long-term safety.
Several external and operational factors intensify insulation aging:
Temperature: High operating temperature accelerates cellulose depolymerization and gas formation. According to IEC, for Class A insulation, every 6°C rise above 80–140°C halves insulation life—the so-called 6-degree rule.
Moisture: Water accelerates cellulose hydrolysis, reduces breakdown voltage, and heightens dielectric losses.
Oxygen and oil protection methods: Open-breathing transformers absorb oxygen, whereas sealed designs retain CO and CO₂, complicating diagnostics.
Overvoltage: Lightning surges, switching impulses, and fault transients impose uneven electrical stress, leading to localized breakdown.
Short-circuit forces: Mechanical displacement of windings alters clearances and accelerates insulation damage.
The overwhelming majority of transformer failures—more than 85%—can be traced back to insulation degradation. Whether in oil-filled or dry-type designs, the insulation system is the true guardian of transformer reliability.
By understanding the mechanisms of paper, oil, and resin deterioration, implementing rigorous monitoring, and adopting preventive and predictive maintenance practices, utilities and operators can dramatically extend transformer service life, minimize unexpected outages, and safeguard the stability of power networks.
Transformers are the beating heart of modern electrical infrastructure. Protecting their insulation is not merely a technical necessity but a vital assurance of energy security and reliability.
