IEC Separable Connectors: Interface, Voltage, and Current Selection
1. The Role of Separable Connectors
Separable connectors serve as the plug-in interface between shielded power cables and transformer apparatus bushings. They enable:
- Quick connection/disconnection of cables without specialized tools or cable preparation
- Dead-front operation — all energized surfaces are fully shielded and grounded for personnel safety
- Loadbreak capability — circuits can be disconnected under load using a standard hotstick
- System flexibility — transformers can be isolated, bypassed, or reconfigured without cable work
- Test point access — integrated capacitive test points allow voltage detection without exposing energized conductors
Eaton Cooper's separable connector product line spans both ANSI/IEEE and IEC standards, serving markets across the Americas, Europe, Middle East, Africa, and Asia-Pacific.
2. 200A Loadbreak Elbow Connectors — LE215 Series
The LE215 series represents Eaton Cooper's 15kV class, 200A loadbreak elbow connector family. These connectors feature integrated arc-quenching capability that safely extinguishes the arc when separated under load — critical for routine maintenance operations on live-front equipment.
| Model | Voltage Class | Current | Configuration | Applications |
|---|---|---|---|---|
| LE215A00TC | 15 kV | 200 A | Standard loadbreak elbow | Radial feed connections, most common configuration |
| LE215B00TC | 15 kV | 200 A | Loadbreak elbow, alternate | Specific cable size/orientation requirements |
| LE215C00TC | 15 kV | 200 A | Loadbreak elbow, alternate | Additional configuration options |
These connectors feature optional integral jacket seal designs that provide enhanced moisture protection at the cable-to-connector interface — a critical consideration for installations in high-humidity or flood-prone environments.
3. 25kV Class Loadbreak Elbows — LE225 Series
For 25kV distribution systems, the LE225 series provides the same 200A loadbreak capability with enhanced insulation for the higher voltage class:
- LE225MA00TC — 25kV, 200A loadbreak elbow connector. Extended creepage distance for 25kV class BIL requirements. Suitable for 22.9kV and 24.9kV distribution systems.
- LE225MC00TC — 25kV, 200A loadbreak elbow connector, alternate configuration. Matched to specific bushing interface geometries.
4. Grounding Elbows — GE215 Series
Grounding elbows enable safe application of portable protective grounds to de-energized circuits. They are essential for establishing an equipotential zone before maintenance work begins:
- GE215-2Y06 — 15kV grounding elbow. Designed to mate with 200A loadbreak bushing interfaces. Provides a positive ground connection through an integrated grounding lead attachment point. Used during lockout/tagout procedures to verify de-energized state and maintain ground continuity throughout maintenance operations.
5. 600A Deadbreak Connectors — 24kV and 35kV Classes
For main feed and loop junction applications requiring higher current capacity, Eaton Cooper offers 600A deadbreak separable connectors:

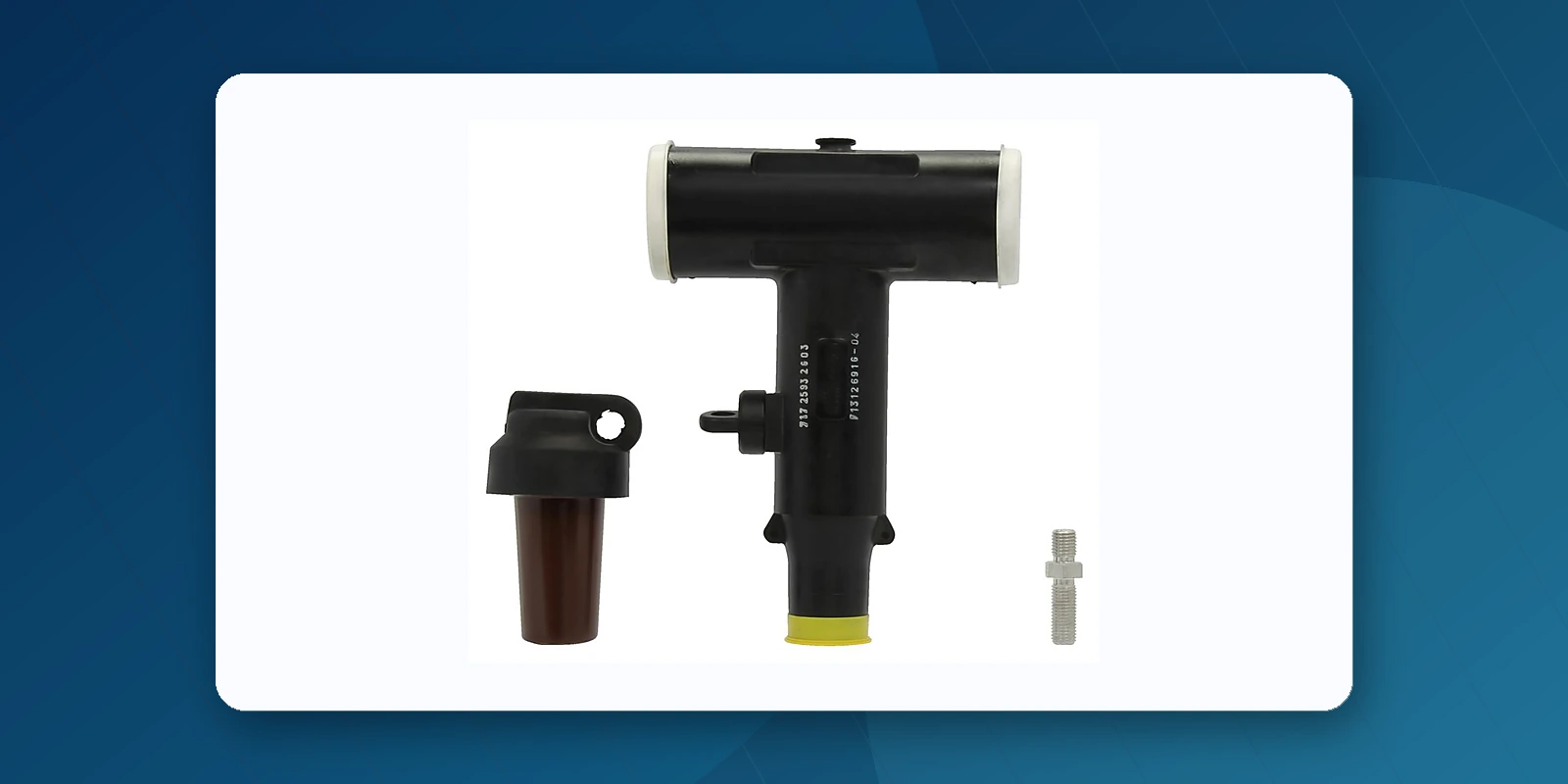

- 24KV 600A Connector — 24kV class deadbreak separable connector system. Rated for 600A continuous current. Uses bolted T-body configuration for loop feed and junction applications. Compatible with 600A deadbreak apparatus bushings.
- 35KV 600A-900A Bushing — 35kV class deadbreak interface rated for 600A continuous (900A emergency overload). Designed for high-capacity transformer primaries and network junctions.
- 4004352B02 — Specialized deadbreak connector component for specific bushing interfaces.
- STHL — Deadbreak connector accessory for test point and grounding applications.
6. IEC Type C 630A Interfaces — DB630 Series
For international markets operating under IEC standards, Eaton Cooper's DB630 series provides the standardized type C interface:
- DB630-40.5T01AY3 — 35kV, IEC type C, 630A bushing. Bolt-in mounting configuration. Compliant with IEC 60137 and IEC 60855 standards. Compatible with IEC 630A separable connector systems from major manufacturers.
- DB250 / BC-D-250 — 250A IEC-compatible bushing and connector series for lighter-duty transformer connections.
7. Manufacturing Quality and Standards
Eaton's Cooper Power series separable connectors are manufactured to the highest quality standards, including:
- IEEE Std 386 — Standard for Separable Insulated Connector Systems
- IEC 60502 — Power Cables with Extruded Insulation
- IEC 60855 — Insulating Foam-Filled Tubes and Solid Rods for Live Working
- ANSI C119 — Electric Connectors
- Comprehensive production testing: AC withstand, partial discharge, corona extinction voltage, thermal cycling, short-circuit current withstand
Manufacturer Resources
Use the latest manufacturer literature for final ratings, ordering codes, installation, and safety requirements.
Frequently Asked Questions
What information is needed to select an IEC separable connector?
Provide system voltage, interface type, rated current, cable conductor size, insulation diameter, cable construction, screen arrangement, and the mating apparatus bushing.
What is the difference between a loadbreak and deadbreak connector?
A loadbreak interface is designed for specified switching duties when used according to its instructions. A deadbreak connector must be de-energized before separation and is commonly used for higher-current connections.
Are ANSI and IEC interfaces automatically interchangeable?
No. Compatibility depends on the standardized interface and the manufacturer’s design, not only on voltage and current labels. Confirm the mating interface on both components.
