Eaton Cooper Transformer Components: A Practical Selection Guide

1. The Eaton Cooper Legacy: Over 130 Years of Power Delivery Innovation

The Cooper Power Systems story begins in 1889 at Thomas Edison's laboratory. Through a series of strategic mergers — first with McGraw Electric Company in 1957 to form McGraw-Edison, and later becoming part of Eaton's electrical portfolio — the Cooper Power series has remained at the forefront of power distribution technology.

Today, Eaton's Cooper Power series products protect and connect distribution networks across the globe, from utility substations to commercial and industrial installations to renewable energy projects. Their components are designed, tested, and manufactured to meet the rigorous demands of IEEE, IEC, and other international standards.

2. Product Categories at a Glance

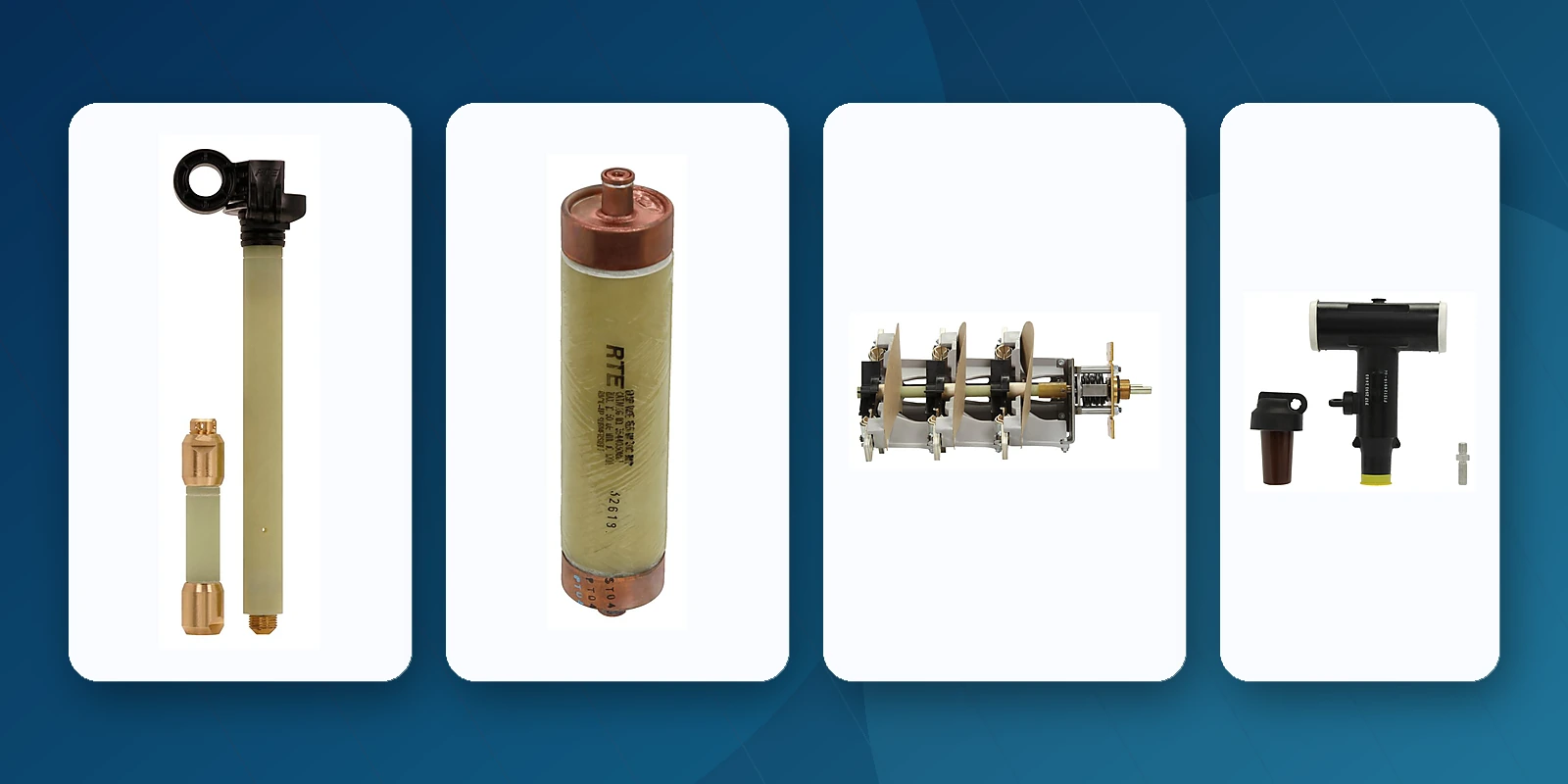

Eaton Cooper's transformer component portfolio covers every aspect of pad-mounted and distribution transformer protection and connectivity:

3. Bay-O-Net Fuses: The Heart of Transformer Protection

The Bay-O-Net fuse is perhaps the most recognized Eaton Cooper product. It's a field-replaceable expulsion fuse that combines the safety of dead-front construction with the convenience of hotstick operation. Unlike internal cartridge fuses that require tank opening for replacement, Bay-O-Net fuses can be changed from outside the transformer — a critical advantage for field maintenance.

Eaton offers four distinct Bay-O-Net fuse link families:

• Current Sensing links — respond to secondary faults, overload currents, and transformer faults. Popular models: 4000353C12B (23kV, 40A), 4000353C17B (23kV, 140A), 4000380C10CB (38kV, 25A), 4038361C05CB (15.5kV, 125A)
• Dual Sensing links — add transformer fluid temperature sensing to protect against long-term thermal stress from overloads and high ambient temperatures. Models: 4000358C03B through 4000358C18CB, 4000380C06CB through 4000380C17CBCN
• Dual Element links — provide time-delay characteristics for improved coordination with secondary protection devices. Available in multiple voltage/current combinations
• High Ampere Overload links — designed with silver-plated contacts for fusing larger kVA transformers, available up to 38kV. Used with silver-plated Flapper assemblies like 4038380B03M

Voltage ratings range from 4.16kV through 38kV, with interrupting ratings up to 3,500A asymmetrical in mineral oil.

4. ELSP Current-Limiting Backup Fuses: The Second Line of Defense

For maximum protection, Eaton Cooper's ELSP (Energy-Limiting Short-circuit Protection) current-limiting backup fuses are connected in series with Bay-O-Net fuses or MagneX interrupters. This two-part protection scheme covers the full fault current spectrum: the Bay-O-Net handles low-to-moderate fault currents, while the ELSP fuse clears high-magnitude faults with minimal energy let-through.

The ELSP fuse features high-purity silica sand filler for superior arc-quenching, a fiberglass housing for mechanical strength, and solid copper end caps with brass inserts. It is available in voltage classes from 8.3kV to 38kV, with current ratings from 30A to 180A. Popular models include: CBUC15150D100 (15.5kV, 150A), CBUC38140D100 (38kV, 140A), CBUC23100C100 (23kV, 100A).

5. Load Break Switches: Flexible Circuit Configuration

Eaton Cooper's oil-immersed load break switches are designed for installation inside pad-mounted transformers and distribution switchgear. The manually charged over-toggle stored spring mechanism ensures consistent, operator-independent switching in less than one cycle.

The product line includes:

• 2-position switches (On/Off): Rated 15.5kV/550A through 46kV/65A, available in bolt-in, weld-in bracket, and ring-mount configurations. Popular models: LS2B338H3N2A (38kV, 300A), LS2B612H3N1A (12/15kV, 630A)
• 4-position sectionalizing switches (V-blade and T-blade): Used for loop feed applications with alternative power source capability, featuring 360-degree rotation in either direction. Popular models: LS4RH3T16B (24kV, 400A), LS4B615H3T16B (15.5kV, 630A), LS4BH3R16B (R-type V-blade)

All switches feature silver-plated copper blades, tungsten-copper arcing contacts, and double O-ring shaft sealing for reliable long-term operation.

6. Why Choose Eaton Cooper Components?

Eaton Cooper transformer components offer several distinct advantages:

• Proven reliability: Over 130 years of engineering heritage, backed by rigorous testing to IEEE and IEC standards
• Global availability: Manufacturing facilities worldwide, including the Cooper Shanghai factory for select product lines
• Complete system approach: All components are designed to work together seamlessly — fuses coordinate with switches, connectors match bushings, arresters complement the protection scheme
• Field-serviceable design: Bay-O-Net fuses are replaceable without entering the transformer tank; switches are hotstick-operable
• Continuous innovation: Flapper valve technology reduces oil spillage during fuse changes; silver-plated contacts enable higher continuous current ratings

7. Sourcing Eaton Cooper Components: The Jiuyingtech Advantage

As a specialized supplier of Eaton Cooper transformer components, Jiuyingtech supports model matching and quotation for Bay-O-Net fuse links, ELSP backup fuses, load break switches, bushings, connectors, and arresters. Availability and commercial terms are confirmed for each requested catalog number.

Transformer manufacturers and utility operators need dependable supply information. Jiuyingtech therefore confirms production origin where relevant, supporting documentation, availability, and estimated lead time for each quotation instead of applying one assumption across a product family.
