The 15KV 200A Loadbreak Bushing Insert is a critical yet often overlooked component in medium-voltage electrical systems. Functioning as both a high-voltage interface and a connective conduit, this bushing insert ensures safe, reliable, and modular connectivity between distribution transformers and underground cable systems. Its importance extends beyond basic functionality—these inserts are engineered to uphold system integrity, simplify maintenance, and facilitate future upgrades.

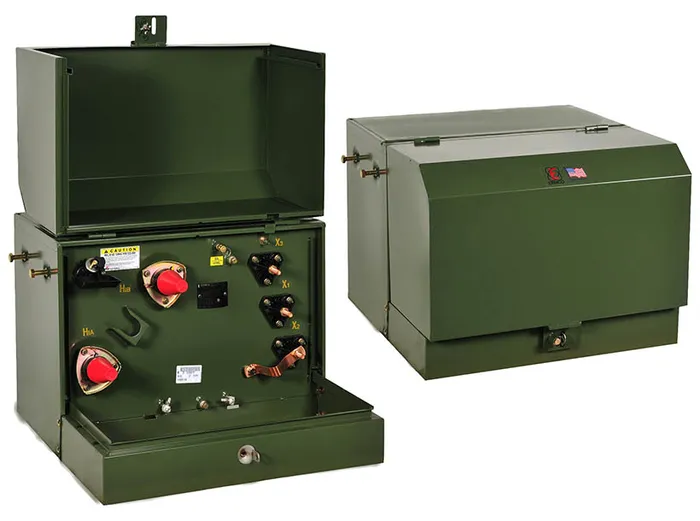

At its core, the Loadbreak Bushing Insert is a type of high-voltage connector, designed to be used in conjunction with a bushing well to establish a secure electrical interface. With a rated voltage of 15KV and a continuous current capacity of 200A, these inserts are ubiquitous in pad-mounted transformers, particularly on the high-voltage side of single-phase units.
Unlike deadbreak connectors, loadbreak variants allow for energized circuit disconnection using proper loadbreak tools. The design must comply with the IEEE 386 standard, ensuring compatibility, safety, and standardized performance across manufacturers.

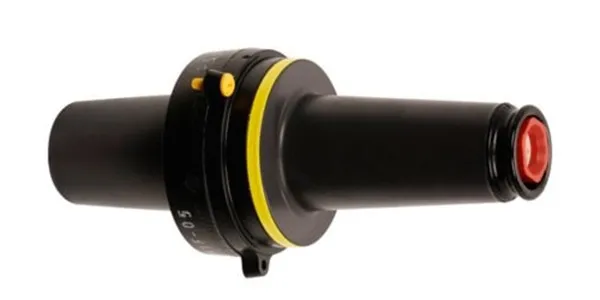

While most 15KV 200A Loadbreak Bushing Inserts require a separate bushing well to complete the connection assembly, integrated designs have emerged. For instance, Cooper Power Systems’ LBI235B150 features a unified construction that eliminates the need for a separate well. Produced in Cooper’s Chinese facility under the model LB235B150GCX, this version—though rated at 35KV—showcases design evolution within the product family.
In LB235B150GCX, the suffix codes reveal key configuration details:
G: Includes a gasket for sealing integrity
C: Equipped with a mechanical clamp
X: Denotes individually packaged units
Though outside the primary scope of this article due to voltage variance, this model illustrates the flexibility and application diversity of bushing inserts across voltage classes.
The standard 15KV 200A Loadbreak Bushing Insert connects on one end to the bushing well, and on the other to a loadbreak elbow—commonly the LE215 from Cooper Power Systems. The elbow-to-insert assembly forms a separable connector interface, critical in underground distribution networks for load switching, fault isolation, and maintenance operations without complete system shutdown.
Typically used in pad-mounted transformer installations, the insert’s design ensures arc-quenching capabilities during disconnection, minimizing risk and maintaining continuity of service.
As industrial automation and artificial intelligence fuel ever-growing energy demands, the need for reliable transformers has surged. This uptick has exposed vulnerabilities in component availability. Manufacturers of transformers are increasingly encountering supply bottlenecks, particularly for high-use items like the 15KV 200A bushing insert.
Component shortages can halt production timelines and compromise grid expansion initiatives. This challenge has made the interchangeability and availability of equivalent inserts across multiple brands essential for operational agility.
To mitigate the impact of shortages, utilities and OEMs should be familiar with alternative bushing inserts that match or exceed the performance of original units. Several reputable manufacturers produce functionally interchangeable inserts, offering plug-and-play compatibility and compliance with IEEE 386 standards.
Recommended equivalents include:

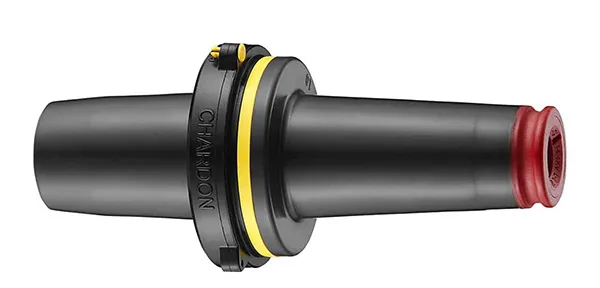

Chardon – 15-LBI200

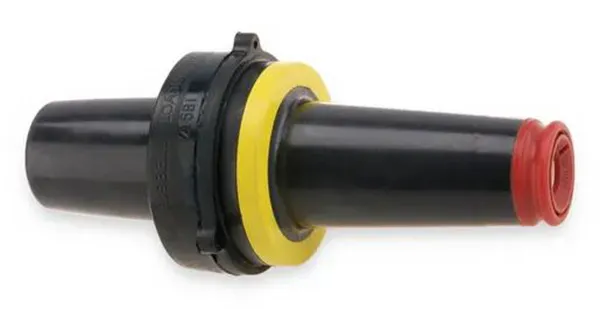

Hubbell – 215BI

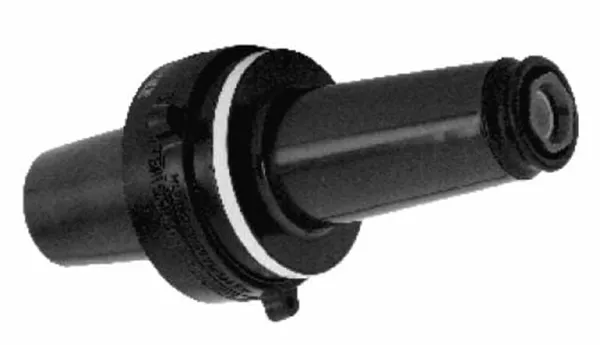

3M – 5810-BI-15

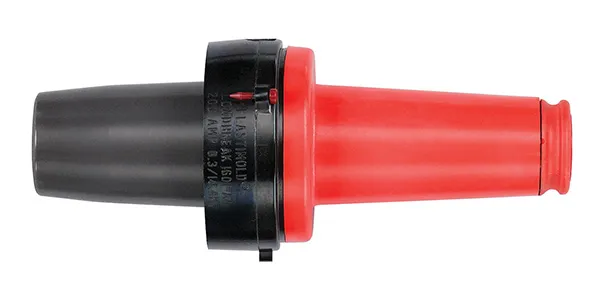

Elastimold – 1601A4

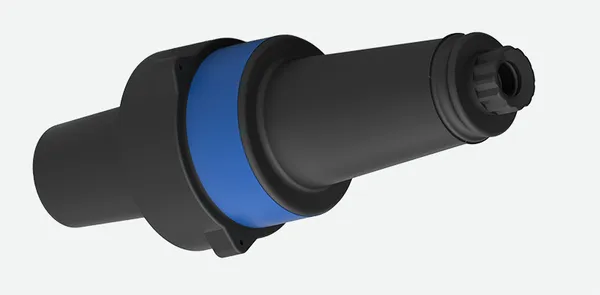

TE Connectivity – ELB-15-200-BI
Each of these alternatives has been field-tested across various grid environments and offers consistent reliability under normal and faulted conditions.
The 15KV 200A Loadbreak Bushing Insert may be a small component, but its role in medium-voltage networks is indispensable. As electrical grids evolve to meet rising power demands and distributed energy integration, standardized, high-performance, and easily sourced components like this insert will become even more critical. For design engineers, maintenance crews, and utility providers, understanding the versatility and compatibility of these inserts ensures future-ready infrastructure and minimized downtime in power delivery.
